7HRC | pdb_00007hrc

PanDDA analysis group deposition -- Crystal Structure of FatA in complex with Z608061328

• PDB DOI: https://doi.org/10.2210/pdb7HRC/pdb
• Deposition Group: G_1002328 (changed state) ExploreG_1002328

• Classification: HYDROLASE
• Organism(s): Arabidopsis thaliana
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-12-23 Released: 2025-08-13
• Deposition Author(s): Kot, E., Ni, X., Tomlinson, C.W.E., Fearon, D., Aschenbrenner, J.C., Fairhead, M., Koekemoer, L., Marx, M.L., Wright, N.D., Mulholland, N.P., Montgomery, M.G., von Delft, F.
• Funding Organization(s): Engineering and Physical Sciences Research Council

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.87 Å
• R-Value Free:
  0.320 (Depositor), 0.325 (DCC)
• R-Value Work:
  0.263 (Depositor), 0.276 (DCC)
• R-Value Observed:
  0.266 (Depositor)

Starting Model: experimental

Literature

PanDDA analysis group deposition

Kot, E., Ni, X., Tomlinson, C.W.E., Fearon, D., Aschenbrenner, J.C., Fairhead, M., Koekemoer, L., Marx, M.L., Wright, N.D., Mulholland, N.P., Montgomery, M.G., von Delft, F.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 67.73 kDa
• Atom Count: 4,678
• Modeled Residue Count: 531
• Deposited Residue Count: 590
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

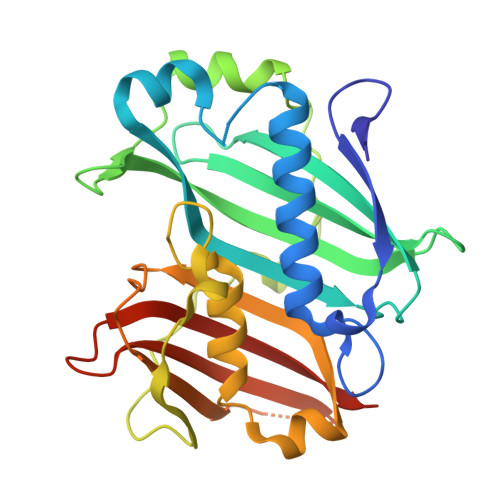

Oleoyl-acyl carrier protein thioesterase 1, chloroplastic	A, B	295	Arabidopsis thaliana	Mutation(s): 0  Gene Names: FATA, FATA1, At3g25110, MJL12.5 EC: 3.1.2.14
UniProt
Find proteins for Q42561 (Arabidopsis thaliana) Explore Q42561  Go to UniProtKB:  Q42561

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
OHP (Subject of Investigation/LOI)	C [auth A], E [auth B]	(2-HYDROXYPHENYL)ACETIC ACID C8 H8 O3 CCVYRRGZDBSHFU-UHFFFAOYSA-N
SO4	D [auth A], F [auth B]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.87 Å
• R-Value Free:  0.320 (Depositor), 0.325 (DCC)
• R-Value Work:  0.263 (Depositor), 0.276 (DCC)
• R-Value Observed: 0.266 (Depositor)

Space Group: I 2 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 99.308	α = 90
b = 99.305	β = 90
c = 128.539	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
REFMAC5	refinement
Aimless	data scaling
PHASER	phasing
XDS	data reduction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-13
Deposition Author(s): Kot, E., Ni, X., Tomlinson, C.W.E., Fearon, D., Aschenbrenner, J.C., Fairhead, M., Koekemoer, L., Marx, M.L., Wright, N.D., Mulholland, N.P., Montgomery, M.G., von Delft, F.

---

Funding Organization	Location	Grant Number
Engineering and Physical Sciences Research Council	United Kingdom	--

Revision History

• Version 1.0: 2025-08-13
  Type: Initial release
