9CYZ | pdb_00009cyz

Crystal structure of human farnesyl pyrophosphate synthase in complex with a cryptic pocket ligand, CL02134

• PDB DOI: https://doi.org/10.2210/pdb9CYZ/pdb

• Classification: TRANSFERASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-08-03 Released: 2025-10-29
• Deposition Author(s): Pandya, V.R., Park, J.
• Funding Organization(s): Natural Sciences and Engineering Research Council (NSERC, Canada)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.30 Å
• R-Value Free:
  0.213 (Depositor), 0.219 (DCC)
• R-Value Work:
  0.168 (Depositor), 0.175 (DCC)
• R-Value Observed:
  0.170 (Depositor)

Literature

Crystal structure of human farnesyl pyrophosphate synthase in complex with a cryptic pocket ligand, CL02134

Pandya, V.R., Park, J.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 44.75 kDa
• Atom Count: 2,886
• Modeled Residue Count: 337
• Deposited Residue Count: 375
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

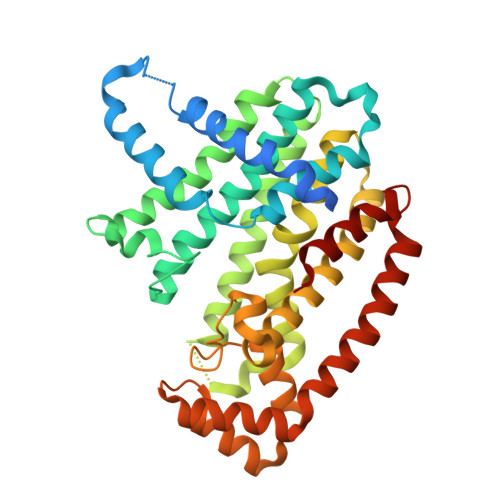

Farnesyl pyrophosphate synthase	A [auth F]	375	Homo sapiens	Mutation(s): 0  Gene Names: FDPS, FPS, KIAA1293 EC: 2.5.1.10 (PDB Primary Data), 2.5.1.1 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P14324 (Homo sapiens) Explore P14324  Go to UniProtKB:  P14324
PHAROS:  P14324 GTEx:  ENSG00000160752

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
YL2 (Subject of Investigation/LOI)	E [auth F], F, G [auth F]	({[6-(4-cyclopropylphenyl)thieno[2,3-d]pyrimidin-4-yl]amino}methanediyl)bis(phosphonic acid) C16 H17 N3 O6 P2 S VIGDNIIDHDWALF-UHFFFAOYSA-N
SO4	C [auth F], D [auth F]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L
GOL	B [auth F]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.30 Å
• R-Value Free:  0.213 (Depositor), 0.219 (DCC)
• R-Value Work:  0.168 (Depositor), 0.175 (DCC)
• R-Value Observed: 0.170 (Depositor)

Space Group: P 4₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 110.75	α = 90
b = 110.75	β = 90
c = 77.5	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
XSCALE	data scaling
REFMAC	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-10-29
Deposition Author(s): Pandya, V.R., Park, J.

---

Funding Organization	Location	Grant Number
Natural Sciences and Engineering Research Council (NSERC, Canada)	Canada	RGPIN-2020-04281

Revision History

• Version 1.0: 2025-10-29
  Type: Initial release
