9DT5 | pdb_00009dt5

Crystal structure of the engineered sulfonylurea repressor CsR (L4.2-20), bound to chlorsulfuron

• PDB DOI: https://doi.org/10.2210/pdb9DT5/pdb

• Classification: DNA BINDING PROTEIN
• Organism(s): Escherichia coli
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-09-30 Released: 2025-10-08
• Deposition Author(s): Schreiter, E.R., Leija, C., Kakani, N.K., McBride, K.E., Looger, L.L.
• Funding Organization(s): Howard Hughes Medical Institute (HHMI)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:
  0.228 (Depositor), 0.233 (DCC)
• R-Value Work:
  0.178 (Depositor), 0.186 (DCC)

Starting Model: experimental

Literature

Design and evolution of agrochemical-responsive gene switches for field crops

McBride, K.E., Kakani, N.K., Fang, J., Leija, C., Hermanson, F., Chan, M., Cho, H.-J., Richey, C., Madrigal, A., Gordon-Kamm, B., Lowe, K., Lenderts, B., Arling, M., Anand, A., Wang, N., Hoerster, G., McGonigle, B., Liu, Q., Falco, C.S., Lassner, M., Looger, L.L., Schreiter, E.R., Marvin, J.S., Bozhanova, N.G.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly 2

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 95.47 kDa
• Atom Count: 6,990
• Modeled Residue Count: 806
• Deposited Residue Count: 828
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

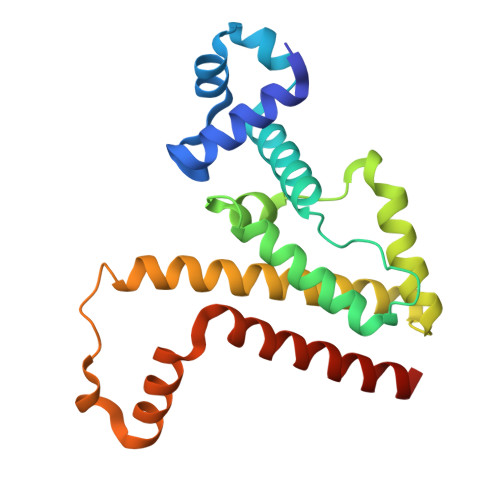

Sulfonylurea repressor CsR (L4.2-20)	A, B, C, D	207	Escherichia coli	Mutation(s): 0  Gene Names: tetR
UniProt
Find proteins for P04483 (Escherichia coli) Explore P04483  Go to UniProtKB:  P04483

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
1CS (Subject of Investigation/LOI)	E [auth A], F [auth B], G [auth C], H [auth D]	1-(2-CHLOROPHENYLSULFONYL)-3-(4-METHOXY-6-METHYL-L,3,5-TRIAZIN-2-YL)UREA C12 H12 Cl N5 O4 S VJYIFXVZLXQVHO-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:  0.228 (Depositor), 0.233 (DCC)
• R-Value Work:  0.178 (Depositor), 0.186 (DCC)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 63.014	α = 90
b = 109.089	β = 90
c = 129.145	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
MOSFLM	data reduction
SCALA	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-10-08
Deposition Author(s): Schreiter, E.R., Leija, C., Kakani, N.K., McBride, K.E., Looger, L.L.

---

Funding Organization	Location	Grant Number
Howard Hughes Medical Institute (HHMI)	United States	--

Revision History

• Version 1.0: 2025-10-08
  Type: Initial release
