9G85 | pdb_00009g85

Structure of Response regulator PleD in complex with c-diGMP and ppGpp

PDB DOI: https://doi.org/10.2210/pdb9G85/pdb

Classification: SIGNALING PROTEIN
Organism(s): Caulobacter vibrioides
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-07-23 Released: 2025-08-06
Deposition Author(s): Jaboulay, C., Dugelay, C., Guzzo, M., Terradot, L.
Funding Organization(s): ATIP-Avenir

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.90 Å
R-Value Free:
0.239 (Depositor), 0.237 (DCC)
R-Value Work:
0.201 (Depositor), 0.201 (DCC)
R-Value Observed:
0.203 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structure of Response regulator PleD in complex with c-diGMP and ppGpp

Jaboulay, C., Dugelay, C., Guzzo, M., Terradot, L.

To be published.

Macromolecule Content

Total Structure Weight: 206.89 kDa
Atom Count: 14,051
Modeled Residue Count: 1,774
Deposited Residue Count: 1,816
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

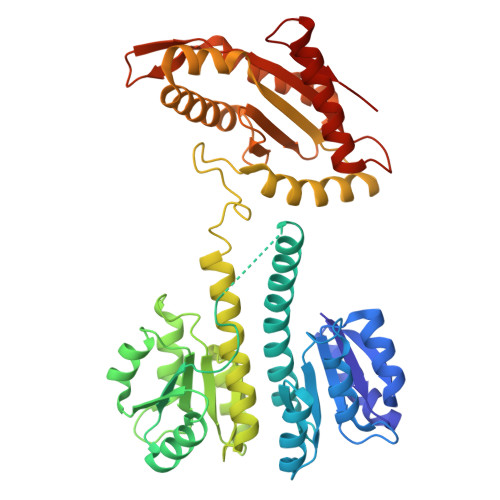

Response regulator PleD	A, B, C, D	454	Caulobacter vibrioides	Mutation(s): 0 Gene Names: pleD, CC_2462 EC: 2.7.7.65
UniProt
Find proteins for Q9A5I5 (Caulobacter vibrioides (strain ATCC 19089 / CIP 103742 / CB 15)) Explore Q9A5I5 Go to UniProtKB: Q9A5I5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9A5I5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
C2E (Subject of Investigation/LOI) Query on C2E Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain L [auth B] SDF format, chain P [auth C] SDF format, chain Q [auth C] SDF format, chain R [auth C] SDF format, chain V [auth D] MOL2 format, chain E [auth A] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain L [auth B] MOL2 format, chain P [auth C] MOL2 format, chain Q [auth C] MOL2 format, chain R [auth C] MOL2 format, chain V [auth D] mmCIF format, chain E [auth A] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain L [auth B] mmCIF format, chain P [auth C] mmCIF format, chain Q [auth C] mmCIF format, chain R [auth C] mmCIF format, chain V [auth D]	E [auth A] I [auth B] J [auth B] L [auth B] P [auth C] E [auth A], I [auth B], J [auth B], L [auth B], P [auth C], Q [auth C], R [auth C], V [auth D]	9,9'-[(2R,3R,3aS,5S,7aR,9R,10R,10aS,12S,14aR)-3,5,10,12-tetrahydroxy-5,12-dioxidooctahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8]tetraoxadiphosphacyclododecine-2,9-diyl]bis(2-amino-1,9-dihydro-6H-purin-6-one) C₂₀ H₂₄ N₁₀ O₁₄ P₂ PKFDLKSEZWEFGL-MHARETSRSA-N		Interactions Focus chain E [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain L [auth B] Focus chain P [auth C] Focus chain Q [auth C] Focus chain R [auth C] Focus chain V [auth D] Interactions & Density Focus chain E [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain L [auth B] Focus chain P [auth C] Focus chain Q [auth C] Focus chain R [auth C] Focus chain V [auth D]
G4P (Subject of Investigation/LOI) Query on G4P Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain K [auth B] SDF format, chain S [auth C] SDF format, chain W [auth D] MOL2 format, chain F [auth A] MOL2 format, chain K [auth B] MOL2 format, chain S [auth C] MOL2 format, chain W [auth D] mmCIF format, chain F [auth A] mmCIF format, chain K [auth B] mmCIF format, chain S [auth C] mmCIF format, chain W [auth D]	F [auth A], K [auth B], S [auth C], W [auth D]	GUANOSINE-5',3'-TETRAPHOSPHATE C₁₀ H₁₇ N₅ O₁₇ P₄ BUFLLCUFNHESEH-UUOKFMHZSA-N		Interactions Focus chain F [auth A] Focus chain K [auth B] Focus chain S [auth C] Focus chain W [auth D] Interactions & Density Focus chain F [auth A] Focus chain K [auth B] Focus chain S [auth C] Focus chain W [auth D]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain M [auth B] SDF format, chain N [auth B] SDF format, chain O [auth C] SDF format, chain T [auth C] SDF format, chain U [auth D] SDF format, chain X [auth D] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] MOL2 format, chain O [auth C] MOL2 format, chain T [auth C] MOL2 format, chain U [auth D] MOL2 format, chain X [auth D] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B] mmCIF format, chain O [auth C] mmCIF format, chain T [auth C] mmCIF format, chain U [auth D] mmCIF format, chain X [auth D]	G [auth A] H [auth A] M [auth B] N [auth B] O [auth C] G [auth A], H [auth A], M [auth B], N [auth B], O [auth C], T [auth C], U [auth D], X [auth D]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth C] Focus chain T [auth C] Focus chain U [auth D] Focus chain X [auth D] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth C] Focus chain T [auth C] Focus chain U [auth D] Focus chain X [auth D]
