9KL6 | pdb_00009kl6

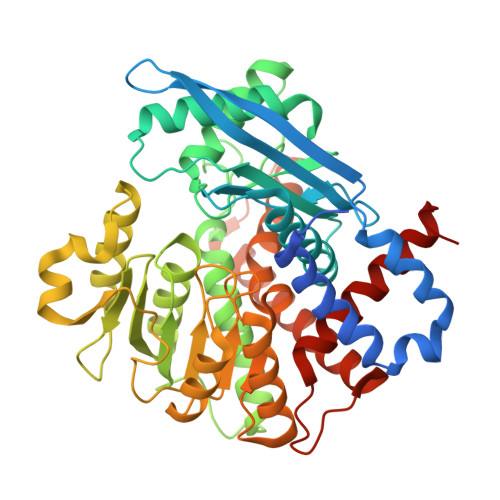

Crystal structure of NADP-specific glutamate dehydrogenase Gdh1 from Schizosaccharomyces pombe in complex with alpha-iminoglutarate and NADP+


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.45 Å
  • R-Value Free:
    0.210 (Depositor), 0.213 (DCC)
  • R-Value Work:
    0.179 (Depositor), 0.182 (DCC)
  • R-Value Observed:
    0.181 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Phosphorylation-mediated Regulation of the NADPH-dependent Glutamate Dehydrogenase, SpGdh1, from Schizosaccharomyces pombe.

Wang, Y.F.Tomita, T.Yoshida, A.Kosono, S.Nishiyama, M.

(2025) J Biological Chem : 110422-110422

  • DOI: https://doi.org/10.1016/j.jbc.2025.110422
  • Primary Citation of Related Structures:
    9KL6

  • PubMed Abstract:

    Glutamate dehydrogenase from the yeast Schizosaccharomyces pombe (SpGdh1) is a pivotal enzyme that catalyzes the conversion of 2-oxoglutarate and ammonium to glutamate using NADPH as a coenzyme. Although SpGdh1 is phosphorylated at several residues, the impact of phosphorylation on enzyme activity and the underlying molecular mechanisms remains unclear. To elucidate the phosphorylation-mediated regulation of SpGdh1, we determined the crystal structure of SpGdh1 binding 2-iminoglutarate (2-IG) and NADP + . The results of the structural analysis revealed that four serine residues for phosphorylation were located near the active site. Ser252 directly interacted with the 2'-phosphate group of the adenine ribose moiety of NADP + , suggesting that the phosphorylation of Ser252 interfered with NADP + binding. To confirm this hypothesis, we prepared SpGdh1 phosphorylation-mimic (Ser to Glu) variants of SpGdh1 at these four Ser residues. The results of a kinetic analysis revealed that the replacement of these four residues increased the apparent K m NADP(H) value and decreased catalytic efficiency, k cat /K m NADP(H) .In contrast, substitutions decreased the apparent K m NAD(H) value and increased catalytic efficiency, k cat /K m NAD(H) . Therefore, the Ser to Glu replacement caused net shifts in the coenzyme specificities (NADPH to NADH and NADP + to NAD + ) of 55- and 2900-fold, respectively. This is the first study to reveal the effects of the phosphorylation of SpGdh1 on its activity.


  • Organizational Affiliation

    Graduate School of Agricultural and Life Sciences, The University of Tokyo, Bunkyo-ku, Tokyo, Japan.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
NADP-specific glutamate dehydrogenase472Schizosaccharomyces pombeMutation(s): 0
Gene Names: gdh1SPCC622.12c
EC: 1.4.1.4
UniProt
Find proteins for P78804 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore P78804
Go to UniProtKB:  P78804
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP78804
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAP (Subject of Investigation/LOI)
Query on NAP

Download Ideal Coordinates CCD File
B [auth A]NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
C21 H28 N7 O17 P3
XJLXINKUBYWONI-NNYOXOHSSA-N
2IT (Subject of Investigation/LOI)
Query on 2IT

Download Ideal Coordinates CCD File
D [auth A](2Z)-2-iminopentanedioic acid
C5 H7 N O4
UZWLXPOZNAJCJV-UTCJRWHESA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
C [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
E [auth A],
F [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.45 Å
  • R-Value Free:  0.210 (Depositor), 0.213 (DCC)
  • R-Value Work:  0.179 (Depositor), 0.182 (DCC)
  • R-Value Observed: 0.181 (Depositor)
Space Group: P 63 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 96.965α = 90
b = 96.965β = 90
c = 188.258γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan21K05358

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-30
    Type: Initial release
