9JCX | pdb_00009jcx

Crystal structure of the HCoV-HKU1 RBD and TMPRSS2


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free:
    0.237 (Depositor), 0.237 (DCC)
  • R-Value Work:
    0.205 (Depositor), 0.205 (DCC)
  • R-Value Observed:
    0.207 (Depositor)

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

The crystal structure of coronavirus RBD-TMPRSS2 complex provides basis for the discovery of therapeutic antibodies.

Zhao, Z.Yang, Q.Liu, X.Li, M.Duan, Y.Du, M.Zhou, A.Liu, H.He, Y.Wang, W.Lu, Y.Zhang, X.Wang, H.Yang, X.Zhang, H.Chen, X.Rao, Z.Yang, H.

(2025) Nat Commun 16: 6636-6636

  • DOI: https://doi.org/10.1038/s41467-025-62023-2
  • Primary Citation of Related Structures:
    9JCX, 9JCY, 9JD0, 9JD1, 9U8G

  • PubMed Abstract:

    HCoV-HKU1, one of seven human coronaviruses (HCoVs) that have harmful effects on human health, accounts for a substantial portion of common cold cases and can cause severe respiratory diseases in certain populations. Currently, effective antiviral treatments against this virus are limited. Recently, TMPRSS2, a host protease long acknowledged for its role in priming the spike proteins of various CoVs and promoting viral entry, was identified as a functional receptor for HCoV-HKU1, opening an avenue for anti-HCoV-HKU1 therapy development. In this study, we elucidate the detailed molecular mechanism underlying the interaction between the HCoV-HKU1 receptor-binding domain (RBD) and TMPRSS2 via crystallography. Guided by these structural insights, we successfully develop two types of therapeutic antibodies against HCoV-HKU1. The first type neutralizes the RBD, potently disrupting its interaction with TMPRSS2 and preventing viral infection. The second type targets TMPRSS2, inhibiting its enzymatic activity and/or interfering with its binding to the RBD. The latter demonstrates broad-spectrum anti-CoV activity, as the enzymatic activity of TMPRSS2 is crucial for both HCoV-HKU1 infection and other CoV infections. Our findings provide crucial structural insights into the recognition of TMPRSS2 by HCoV-HKU1 and offer promising antibody-based strategies for combating HCoV-HKU1 and other CoV infections.


  • Organizational Affiliation

    Shanghai Institute for Advanced Immunochemical Studies and School of Life Science and Technology, ShanghaiTech University, Shanghai, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

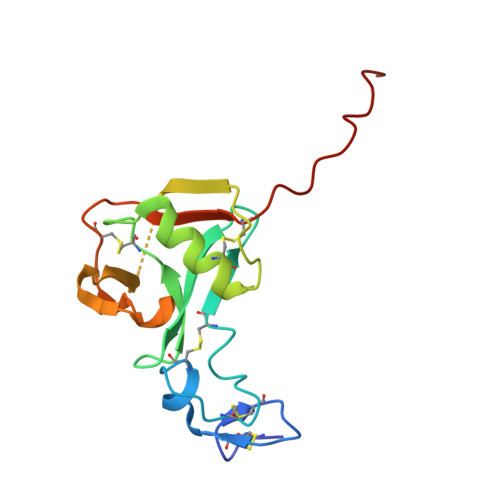

Transmembrane protease serine 2 non-catalytic chain146Homo sapiensMutation(s): 5
Gene Names: TMPRSS2PRSS10
EC: 3.4.21.122
UniProt & NIH Common Fund Data Resources
Find proteins for O15393 (Homo sapiens)
Explore O15393
Go to UniProtKB:  O15393
PHAROS:  O15393
GTEx:  ENSG00000184012
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15393
Glycosylation
Glycosylation Sites: 1Go to GlyGen: O15393-1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Transmembrane protease serine 2 catalytic chainB [auth C]249Homo sapiensMutation(s): 1
Gene Names: TMPRSS2PRSS10
EC: 3.4.21.122
UniProt & NIH Common Fund Data Resources
Find proteins for O15393 (Homo sapiens)
Explore O15393
Go to UniProtKB:  O15393
PHAROS:  O15393
GTEx:  ENSG00000184012
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15393
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Spike protein S1C [auth B]308Human coronavirus HKU1 (isolate N1)Mutation(s): 0
Gene Names: S3
UniProt
Find proteins for Q5MQD0 (Human coronavirus HKU1 (isolate N1))
Explore Q5MQD0
Go to UniProtKB:  Q5MQD0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5MQD0
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free:  0.237 (Depositor), 0.237 (DCC)
  • R-Value Work:  0.205 (Depositor), 0.205 (DCC)
  • R-Value Observed: 0.207 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 63.35α = 90
b = 120.72β = 90
c = 126.13γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China92169109

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-30
    Type: Initial release
